Choose Your Model: TERRAFORM 8 (12,000 BTU) or TERRAFORM 12 (16,000 BTU)

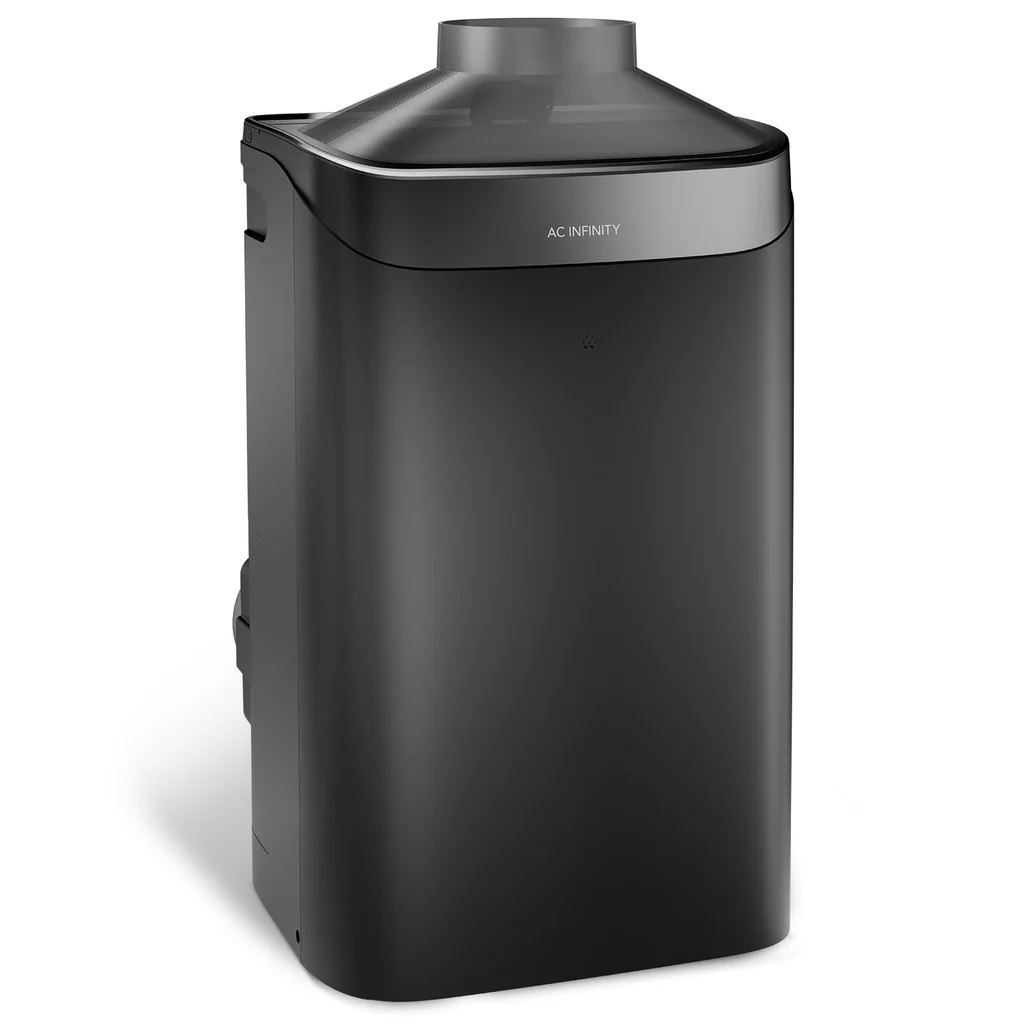

The AC Infinity TERRAFORM Series is a professional, all-in-one climate control solution built for indoor plant environments. Both models deliver reliable control of temperature, humidity, and VPD using adaptive AI, with a streamlined setup that reduces equipment clutter and keeps your grow space stable year-round.

Connect one duct to output cooling, heating, and air exchange. Only dry mode uses dual ducting for advanced dehumidification. Select the BTU size that matches your space using the dropdown above.

---

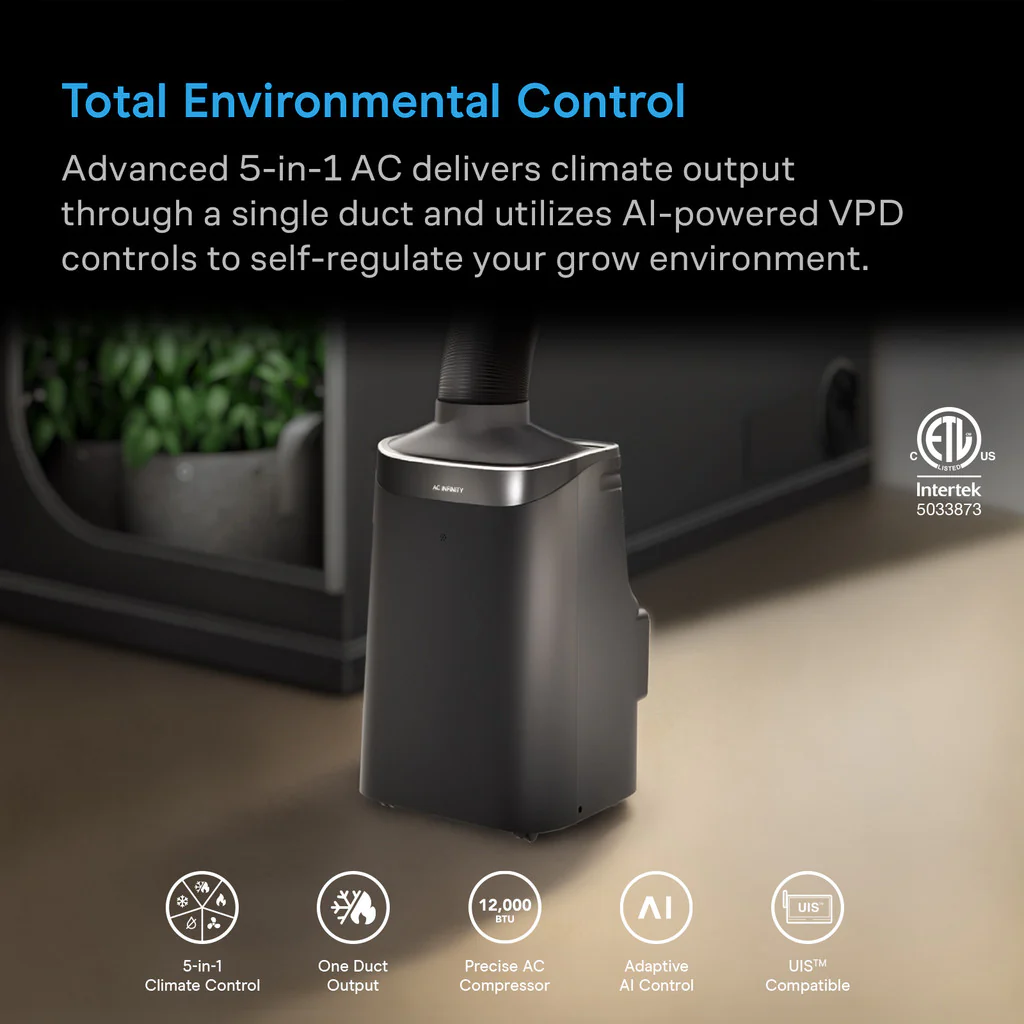

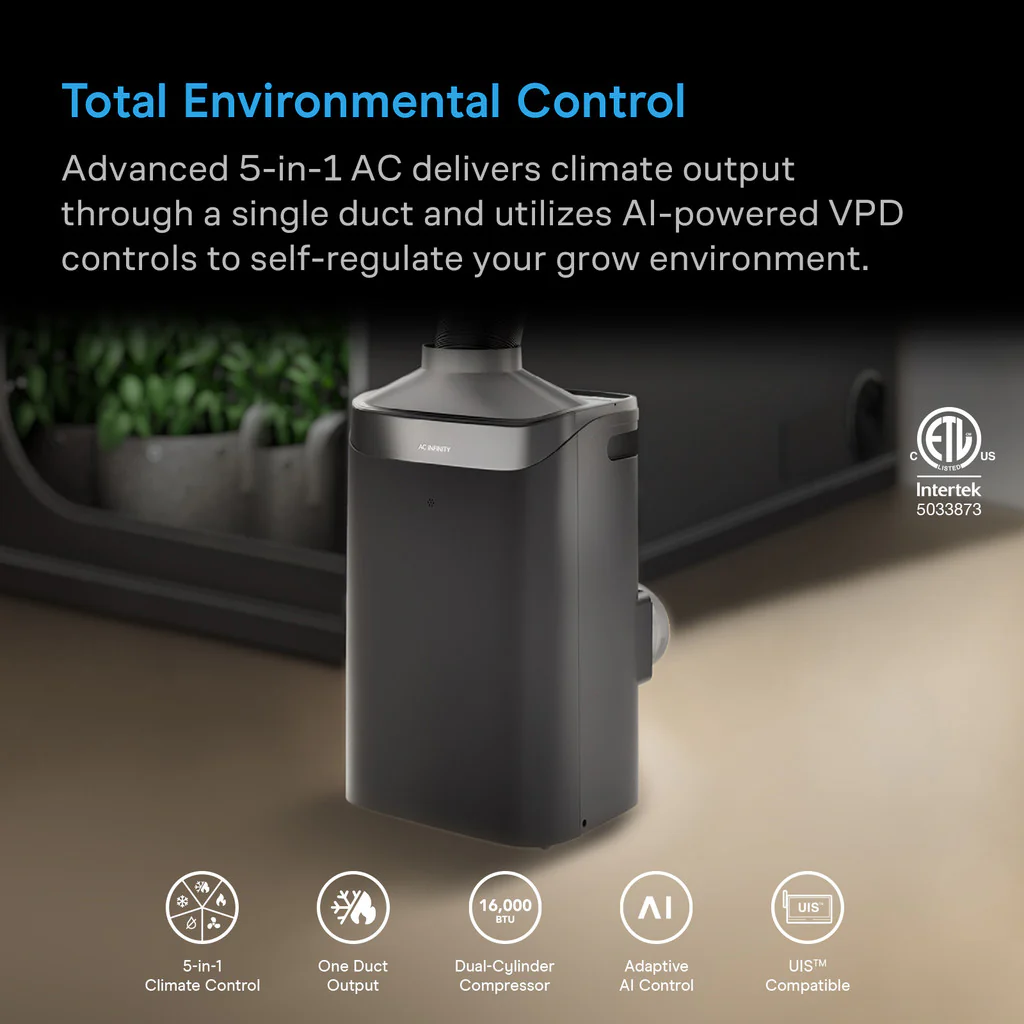

Total Environmental Control (5-in-1)

Both TERRAFORM models provide complete climate management in one unit:

• Cooling
• Heating
• Dehumidifying
• Air circulation
• Smart regulation for temperature, humidity, and VPD

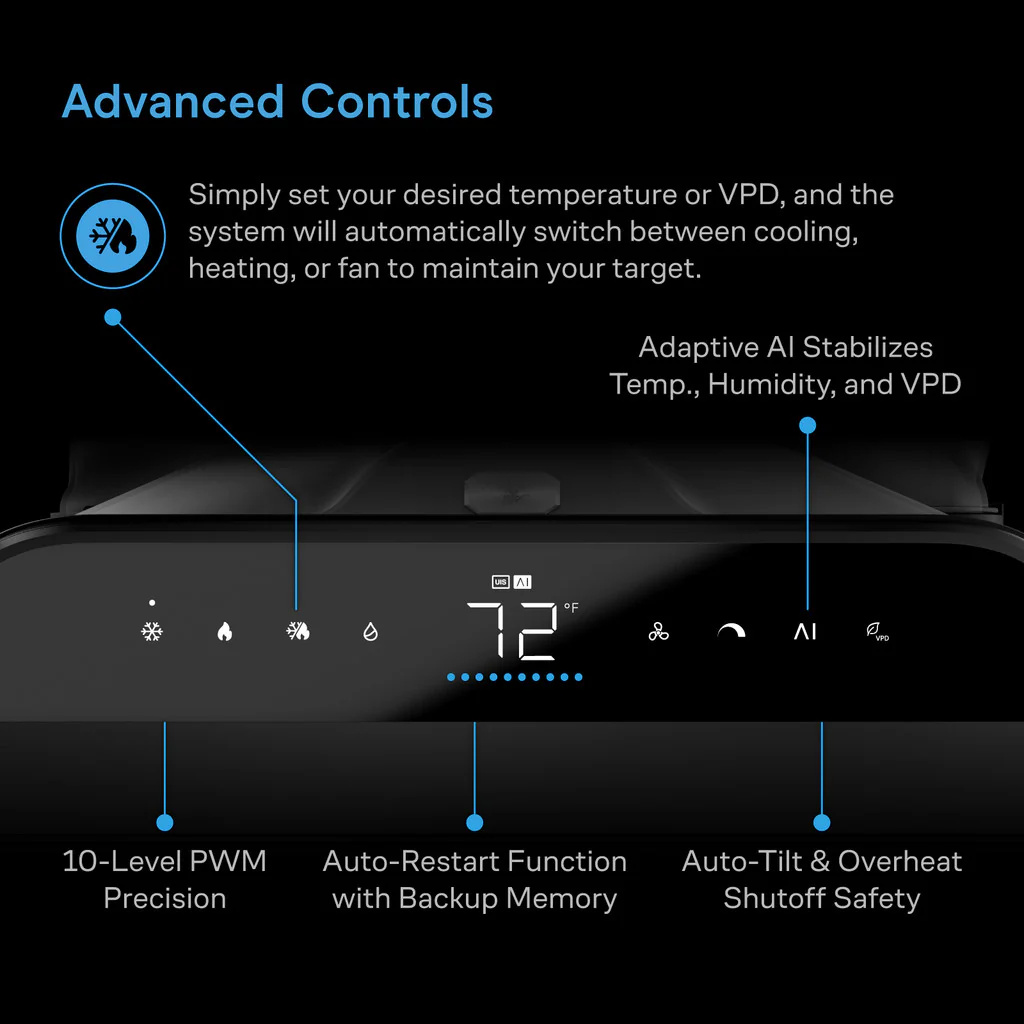

Set your desired temperature or VPD target, then let the system automatically switch between cool, heat, and fan to maintain a consistent environment with no manual mode changes.

---

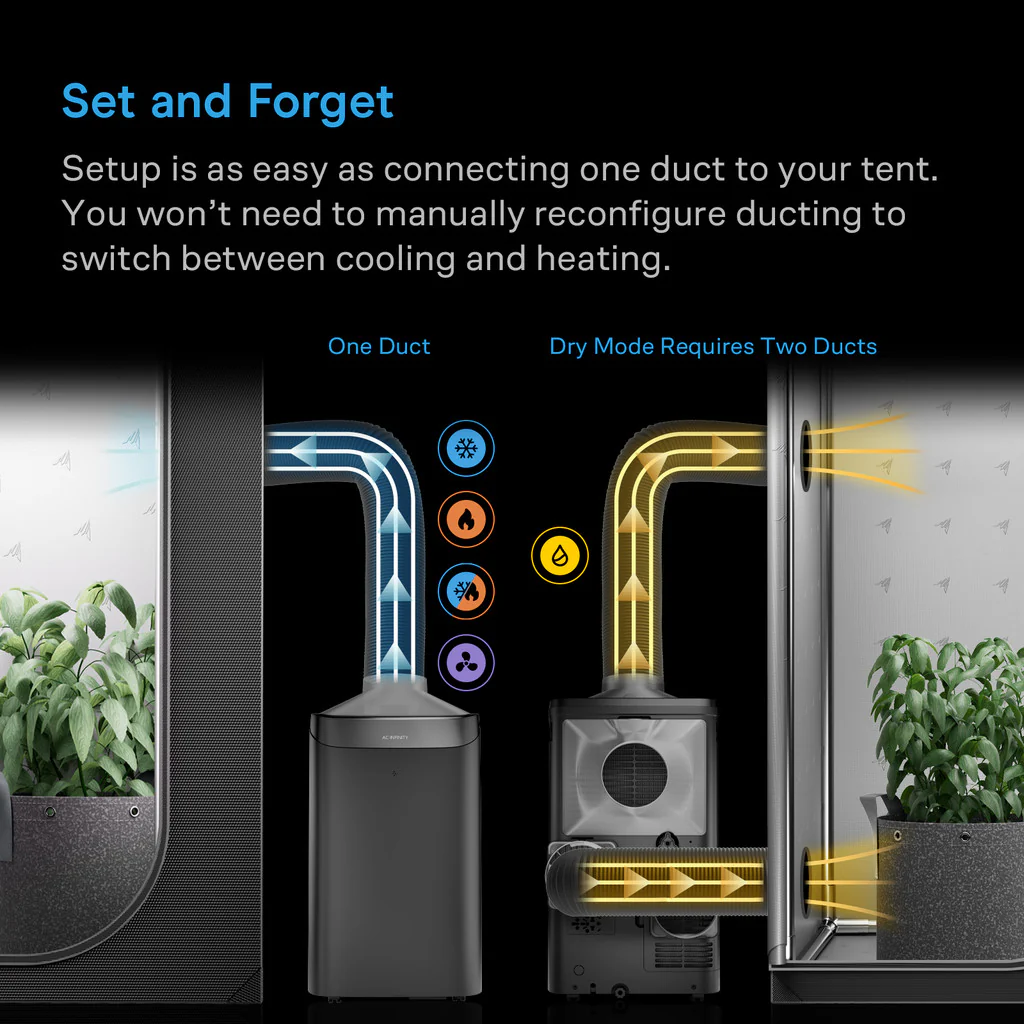

One-Duct Auto Switching + Self-Evaporative Design

• One-duct operation handles cooling, heating, and air exchange in most modes
• Dry mode supports dual ducting for enhanced moisture removal when needed

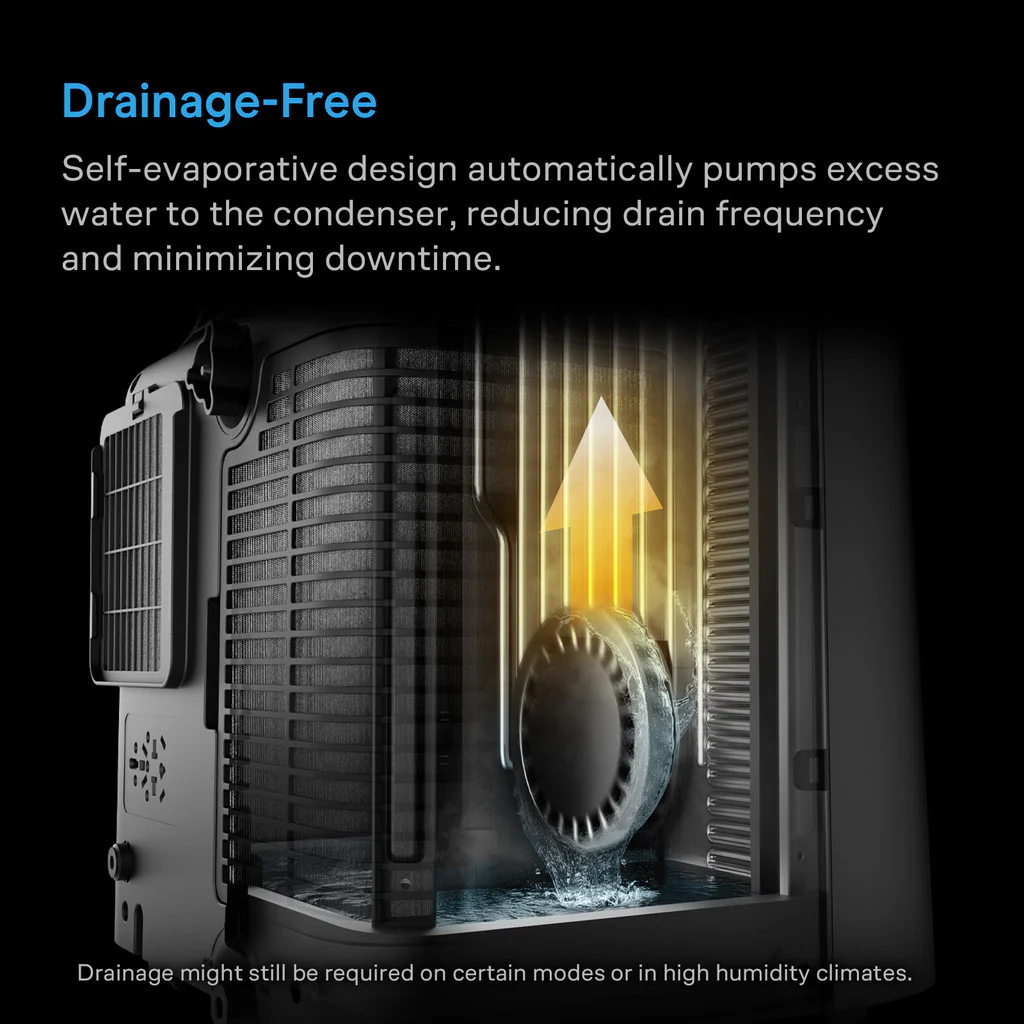

• Self-evaporative system channels excess water to the condenser to reduce drain frequency and downtime

---

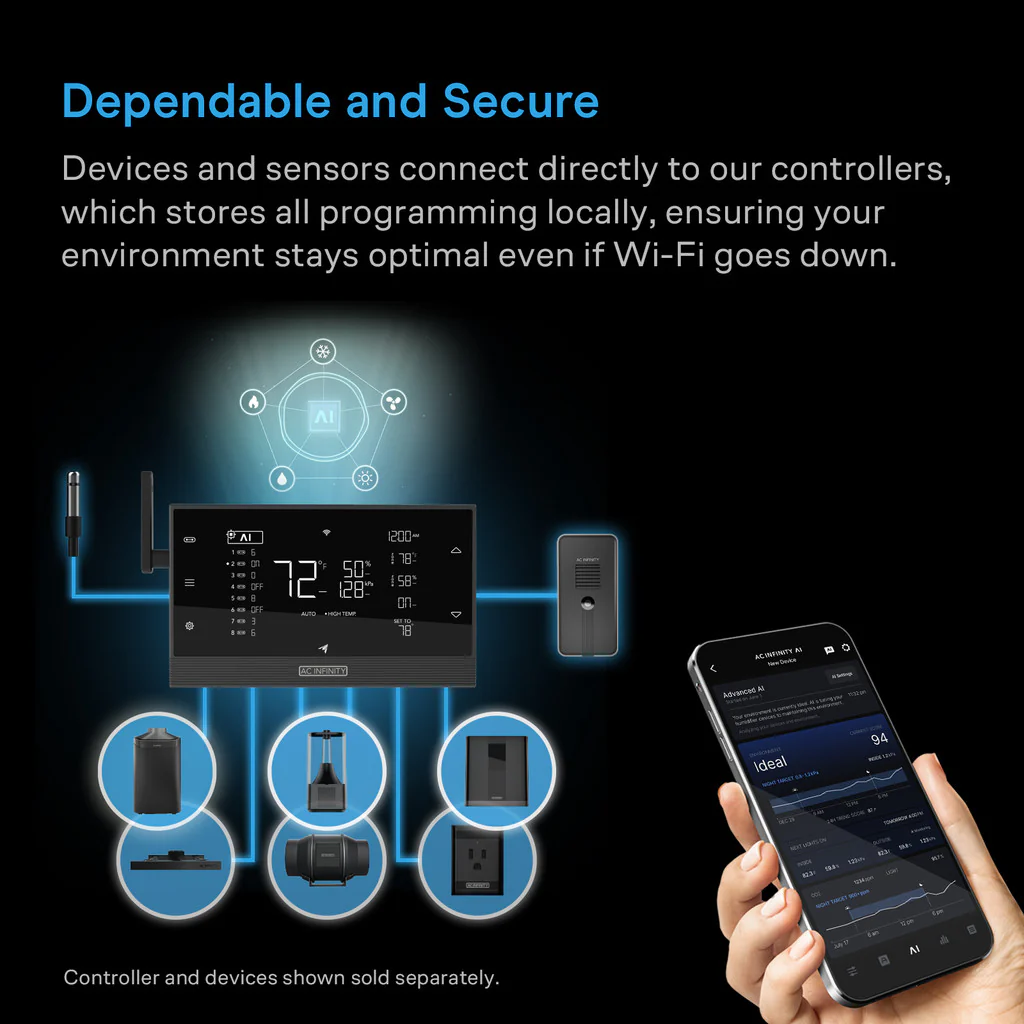

UIS Compatibility + App Automation

Both models are UIS compatible and can integrate with UIS controllers for WiFi app connectivity. This unlocks advanced automations, data tracking, alerts, and guided grow support so you can fine-tune your environment and monitor performance with confidence.

---

Choose Your Model

The TERRAFORM Series is offered in two sizes to match your grow space needs, choose the compact mid-size option or step up to the premium, large-space model for stronger output and expanded airflow control.

TERRAFORM 8 (12,000 BTU) – Compact / Mid-Size

Recommended for grow spaces up to 10 ft × 10 ft

• Cooling: 12,000 BTU
• Heating: 10,000 BTU
• Max Power Draw: 1200 W
• Current: 10 A
• Size: 15.27 in (L) × 15.82 in (W) × 27.71 in (H)
• Model: AC-ACN8
• UPC: 819137025189

TERRAFORM 12 (16,000 BTU) – Premium / Large Space

Recommended for grow spaces up to 20 ft × 20 ft

• Cooling: 16,000 BTU
• Heating: 12,000 BTU
• Max Power Draw: 1400 W
• Current: 11.8 A
• Size: 16.57 in (L) × 16.65 in (W) × 30.62 in (H)
• Model: AC-ACN12
• UPC: 819137025295

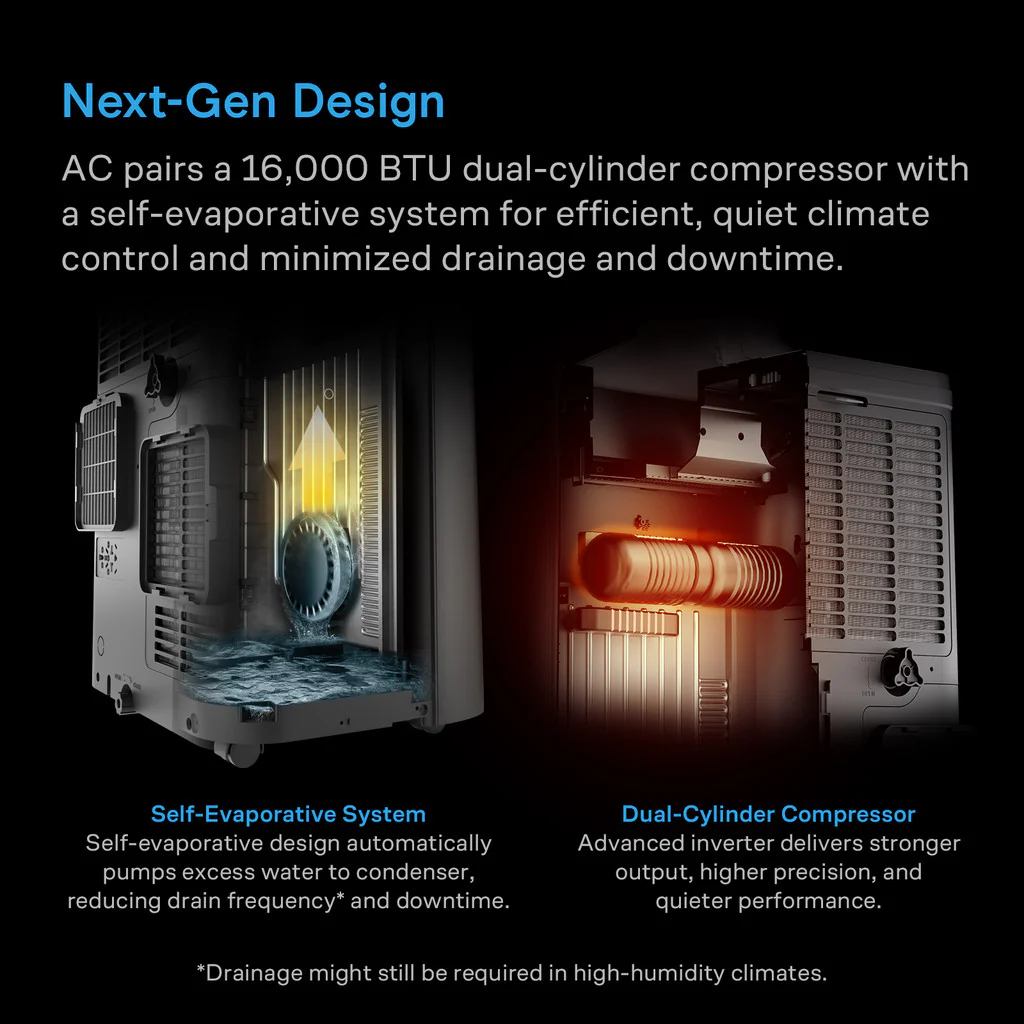

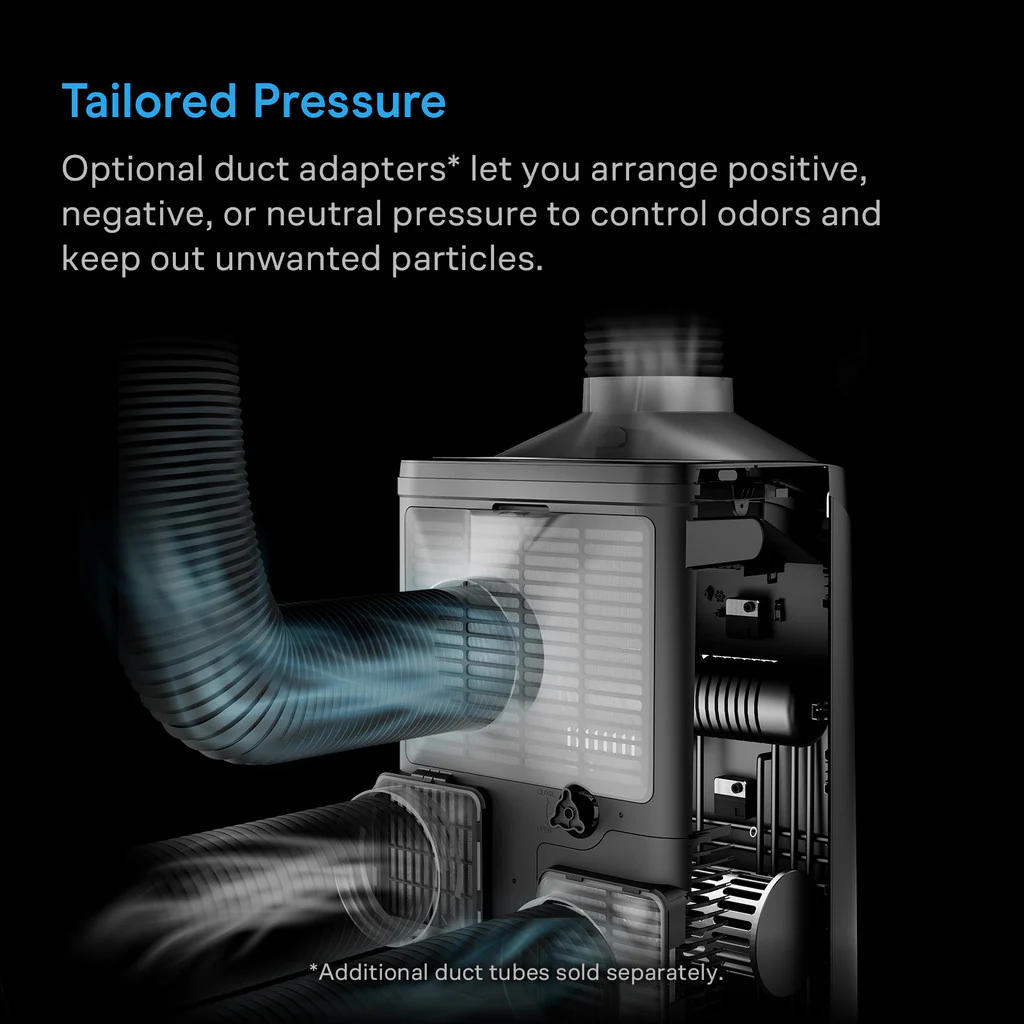

The TERRAFORM 12 is powered by an advanced dual-cylinder inverter compressor for stronger output, higher precision, and quieter performance in larger environments. It also includes additional duct ports that support optional 4-way ducting (additional ducting sold separately) to help you set positive, negative, or neutral pressure for cleaner airflow and better odor routing.

---

Side-by-Side Comparison

Feature	TERRAFORM 8 (12,000 BTU)	TERRAFORM 12 (16,000 BTU)
Best For	Compact / mid-size grow spaces	Premium / large grow spaces
Recommended Coverage	Up to 10 ft × 10 ft	Up to 20 ft × 20 ft
Cooling Power	12,000 BTU	16,000 BTU
Heating Power	10,000 BTU	12,000 BTU
Smart Controls	Temperature, Humidity, VPD
Modes	Cooling, Heating, Dehumidifying, Circulation
Control Range	10 levels
One-Duct Auto Switching	Yes (dry mode supports dual ducting)
Self-Evaporative Design	Yes (reduces drain frequency and downtime)
UIS Compatibility	Yes (supports WiFi app connectivity via UIS controllers)
Additional Duct Ports / 4-Way Ducting	Standard duct configuration	Supports optional 4-way ducting for airflow and pressure customization
Max Power Draw	1200 W	1400 W
Current	10 A	11.8 A
Dimensions (L × W × H)	15.27 in × 15.82 in × 27.71 in	16.57 in × 16.65 in × 30.62 in
Operating Temp	61–95°F
Operating Humidity	35–85% RH
Voltage / Frequency	115V AC / 60 Hz

---

Quick Buying Guide

Choose TERRAFORM 8 (12,000 BTU) if:

• You need a compact footprint for a mid-size grow environment
• Your space is under 10 × 10 ft
• You want efficient climate control with lower power draw

Choose TERRAFORM 12 (16,000 BTU) if:

• You’re running a larger grow space up to 20 × 20 ft
• You need stronger cooling and heating capacity
• You want premium performance plus optional airflow and pressure customization

---

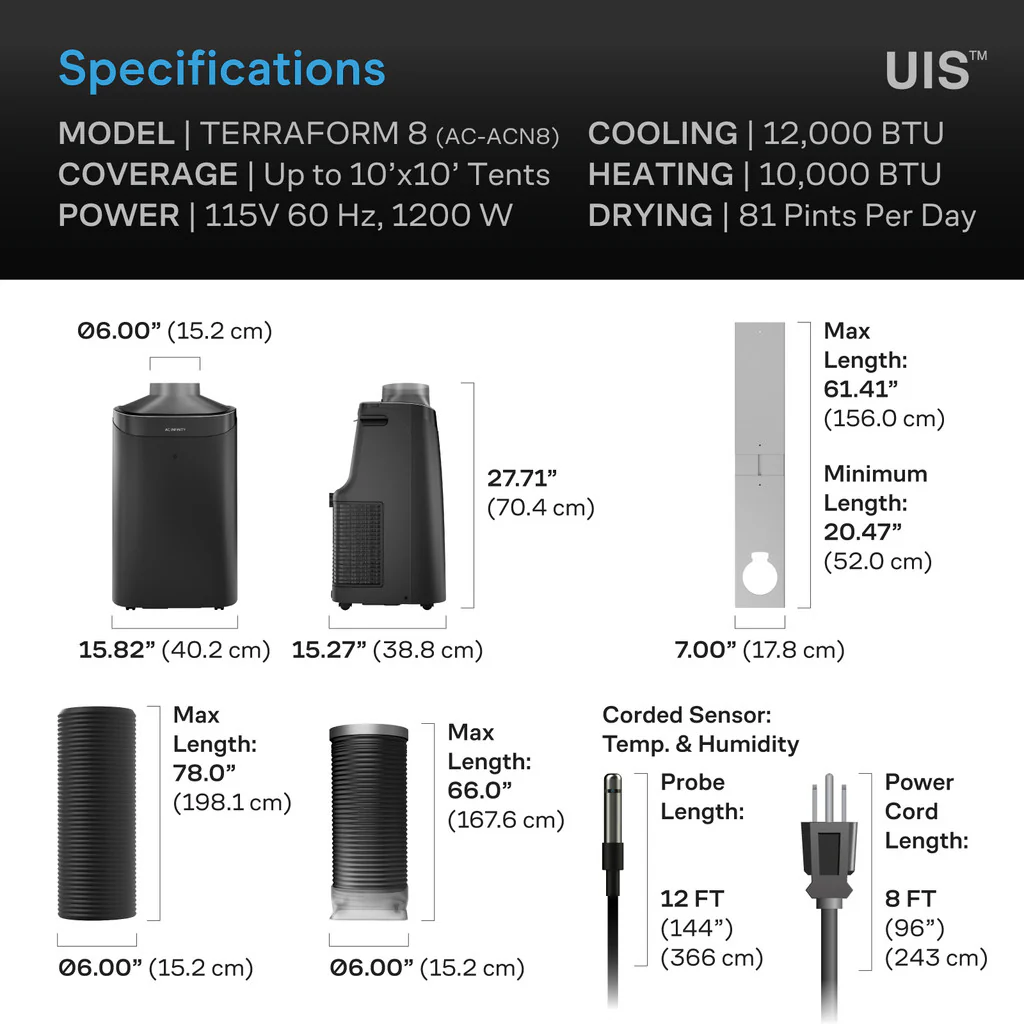

Technical Specifications

TERRAFORM 8 (12,000 BTU) – AC-ACN8

• Manufacturer: AC Infinity Inc.
• Product Name: TERRAFORM 8
• Model: AC-ACN8
• UPC: 819137025189
• Dimensions: 15.27 in (L) × 15.82 in (W) × 27.71 in (H)
• Duct Tube Lengths: 78.00 in (198.1 cm), 66.00 in (167.6 cm)
• Cooling Power: 12,000 BTU
• Heating Power: 10,000 BTU
• Max Power Draw: 1200 W
• Voltage: 115V AC
• Frequency: 60 Hz
• Current: 10 A
• Operating Temperature: 61–95°F
• Operating Humidity: 35–85% RH

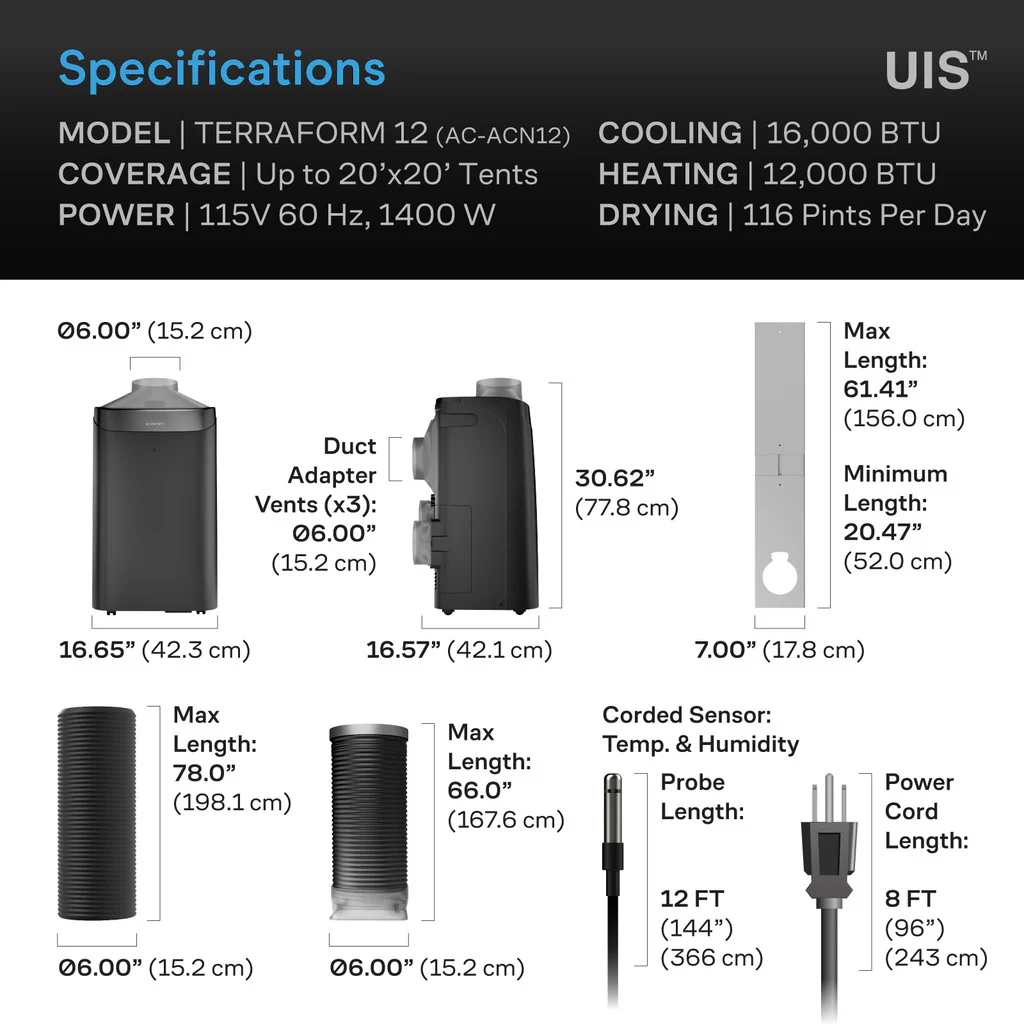

TERRAFORM 12 (16,000 BTU) – AC-ACN12

• Manufacturer: AC Infinity Inc.
• Product Name: TERRAFORM 12
• Model: AC-ACN12
• UPC: 819137025295
• Dimensions: 16.57 in (L) × 16.65 in (W) × 30.62 in (H)
• Duct Tube Lengths: 78.00 in (198.1 cm), 66.00 in (167.6 cm)
• Cooling Power: 16,000 BTU
• Heating Power: 12,000 BTU
• Max Power Draw: 1400 W
• Voltage: 115V AC
• Frequency: 60 Hz
• Current: 11.8 A
• Operating Temperature: 61–95°F
• Operating Humidity: 35–85% RH

---

FAQs

What is the AC Infinity TERRAFORM Series?

The AC Infinity TERRAFORM Series is a professional all-in-one climate control system designed for indoor plant environments. It combines cooling, heating, dehumidifying, air circulation, and smart climate regulation into a single unit. Both models automatically maintain temperature, humidity, and VPD to create stable growing conditions.

What is the difference between TERRAFORM 8 and TERRAFORM 12?

The main difference is cooling and heating capacity. The TERRAFORM 8 provides 12,000 BTU of cooling and is recommended for grow spaces up to 10 × 10 feet. The TERRAFORM 12 provides 16,000 BTU of cooling and is designed for larger grow spaces up to 20 × 20 feet. The 16,000 BTU model also supports additional duct ports for optional 4-way airflow control.

What size grow space can these climate systems handle?

The TERRAFORM 8 is ideal for spaces up to approximately 10 × 10 feet, while the TERRAFORM 12 is recommended for larger environments up to 20 × 20 feet. Actual performance can vary depending on lighting heat load, insulation, and airflow within the grow area.

How does one-duct auto switching work?

In most operating modes, only one duct is required to manage cooling, heating, and air exchange. The system automatically switches between climate modes to maintain your target environment. Dry mode may use two ducts for improved moisture removal.

Can I control temperature, humidity, and VPD with these units?

Yes. Both TERRAFORM models include smart environmental controls that monitor and regulate temperature, humidity, and VPD. You can set your preferred climate targets and allow the system to automatically maintain stable conditions.

Are TERRAFORM units compatible with AC Infinity UIS controllers?

Yes. Both models are fully compatible with AC Infinity UIS controllers. When connected, you can monitor and adjust your environment through the AC Infinity app, create automations, track environmental data, and receive alerts.

Do these climate systems require constant draining?

No. The TERRAFORM Series uses a self-evaporative system that channels excess condensation into the condenser. This reduces how often draining is required compared with traditional portable air conditioners.

Can these units help control airflow and pressure in a grow space?

Yes. Both models manage airflow as part of their climate control system. The TERRAFORM 12 also includes additional duct ports that support optional 4-way ducting, allowing growers to configure positive, negative, or neutral pressure environments.

What electrical requirements do these units need?

Both models operate on standard 115V household power. The TERRAFORM 8 draws up to 1200 watts, while the TERRAFORM 12 draws up to 1400 watts at maximum output.

Is the TERRAFORM Series portable?

Yes. Both models include transportation wheels so they can be repositioned easily as your grow setup evolves.

Which TERRAFORM model should I choose?

Choose the TERRAFORM 8 if you have a mid-size grow space under 10 × 10 feet and want a compact climate solution. Choose the TERRAFORM 12 if you operate a larger grow area up to 20 × 20 feet or require stronger cooling capacity and expanded airflow control options.
