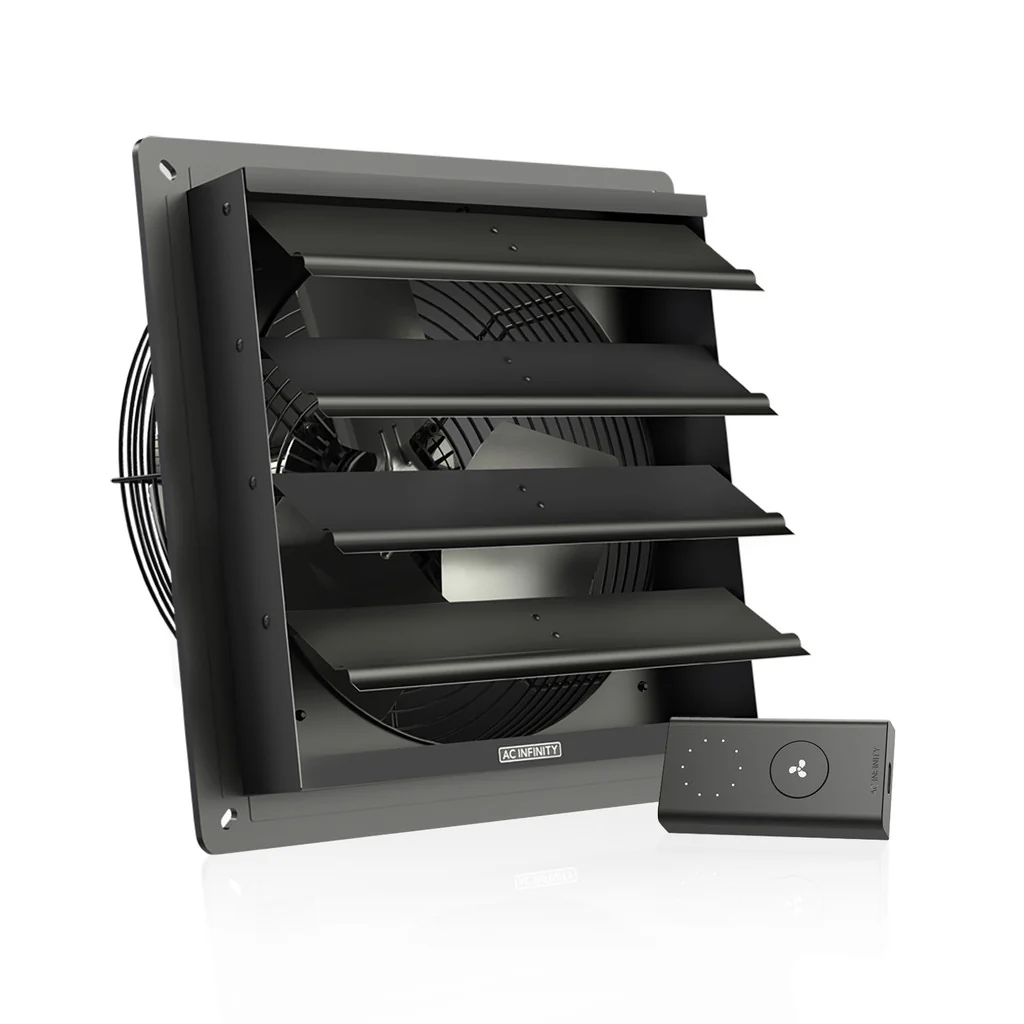

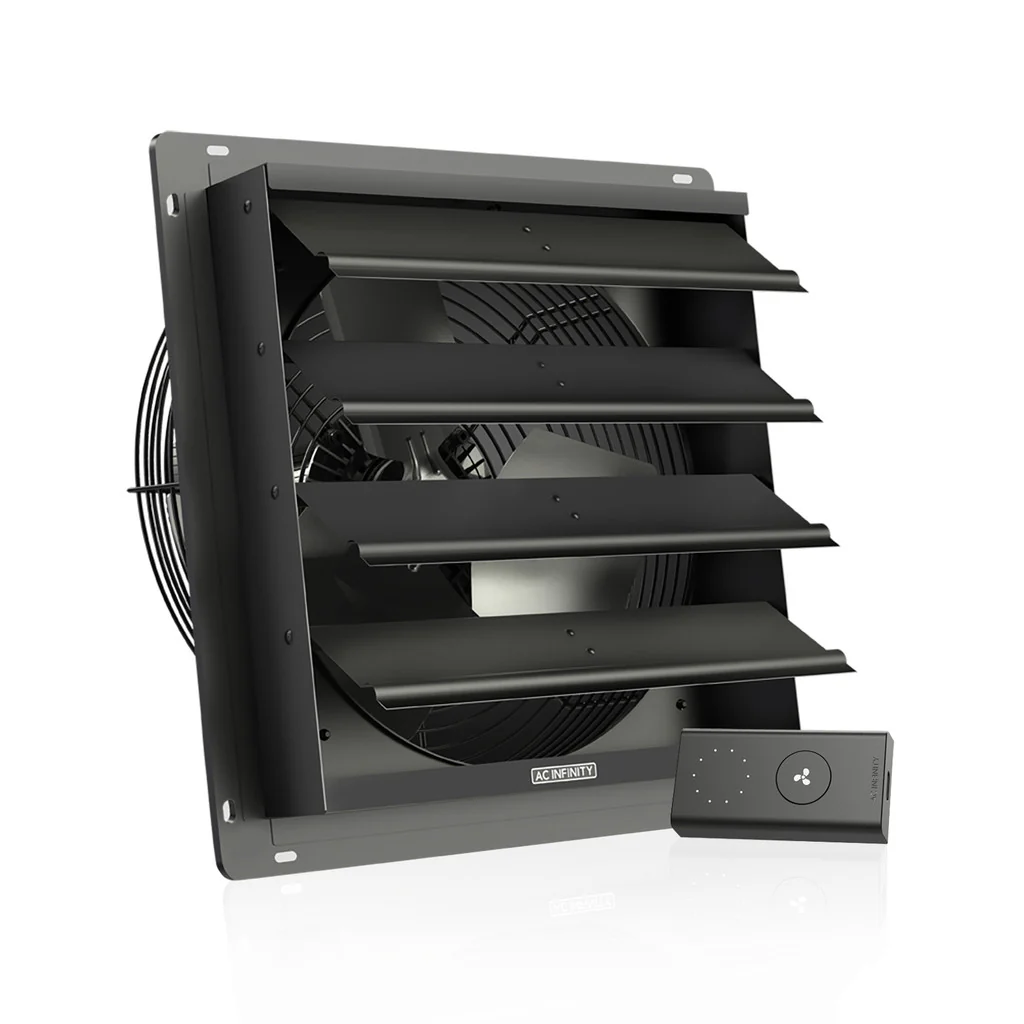

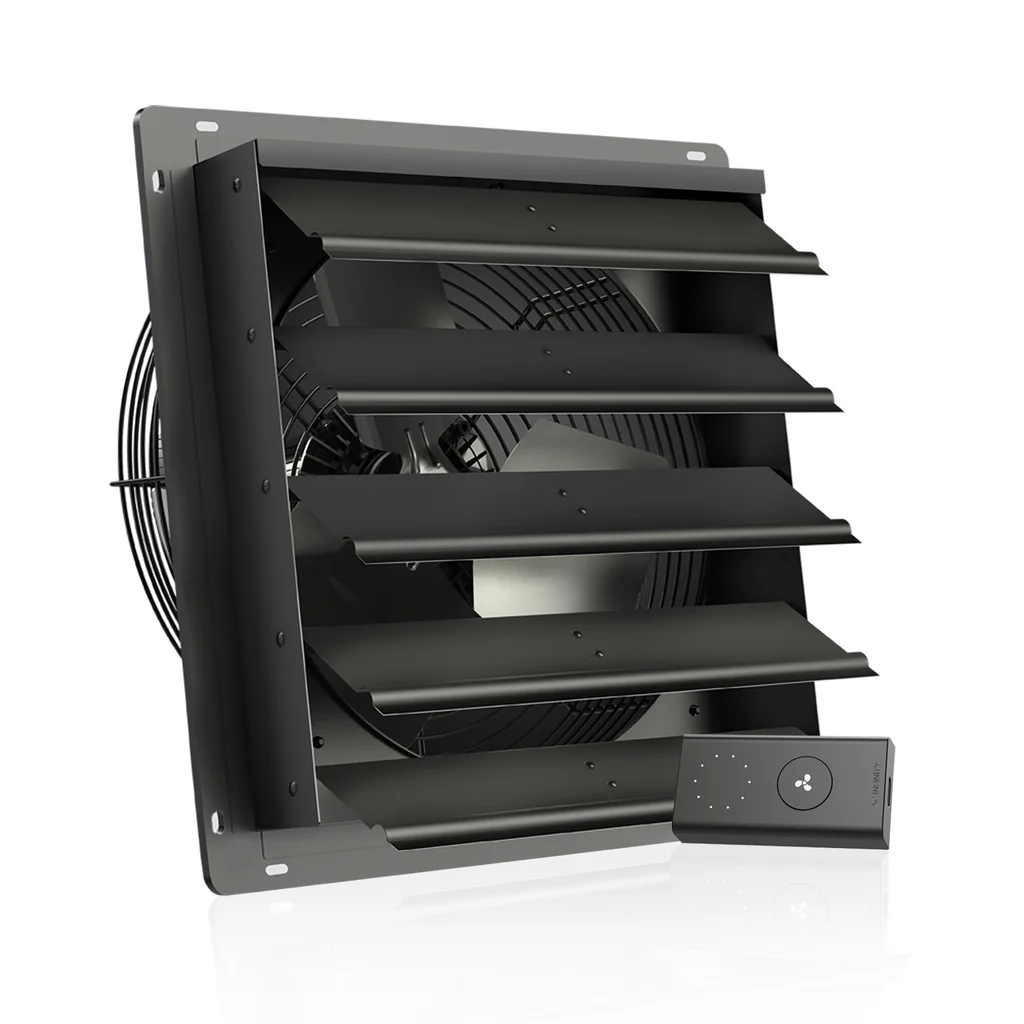

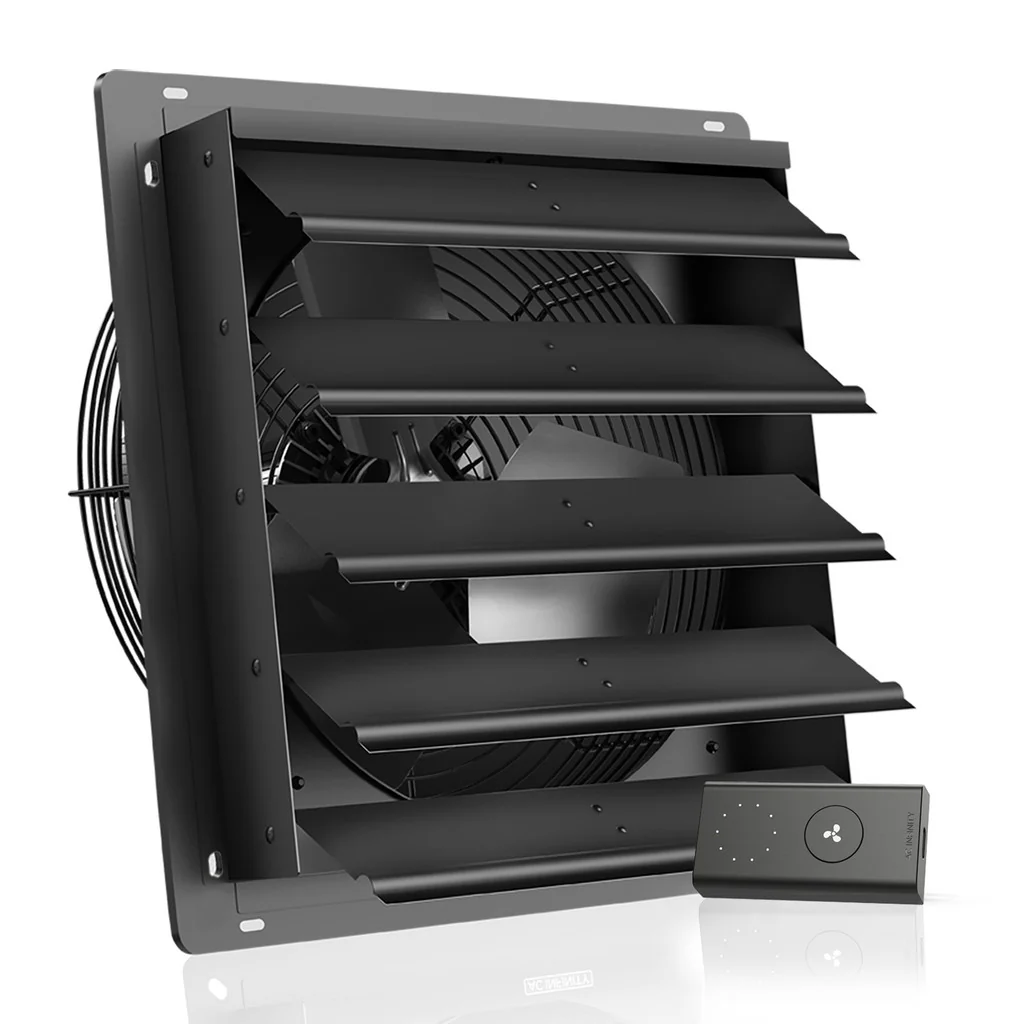

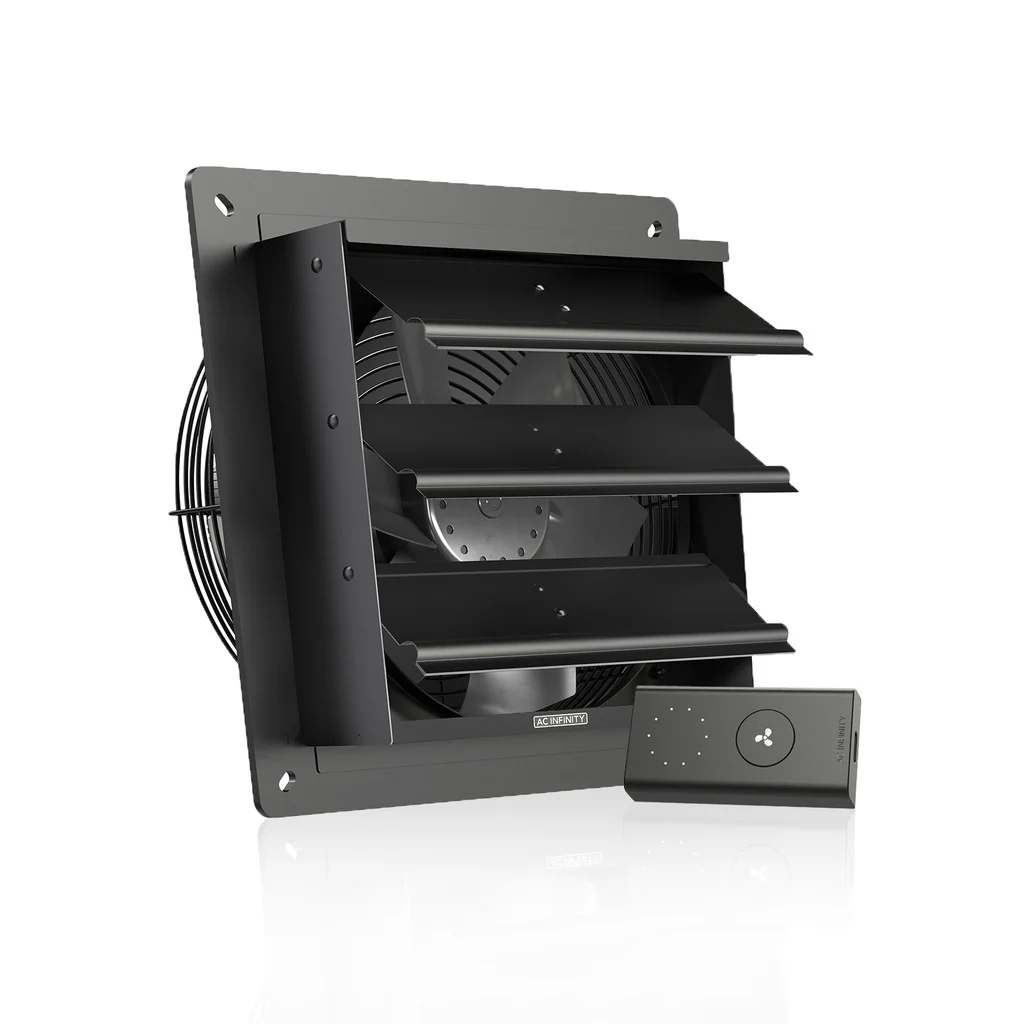

High-Performance Shutter Exhaust Fan with Speed Control

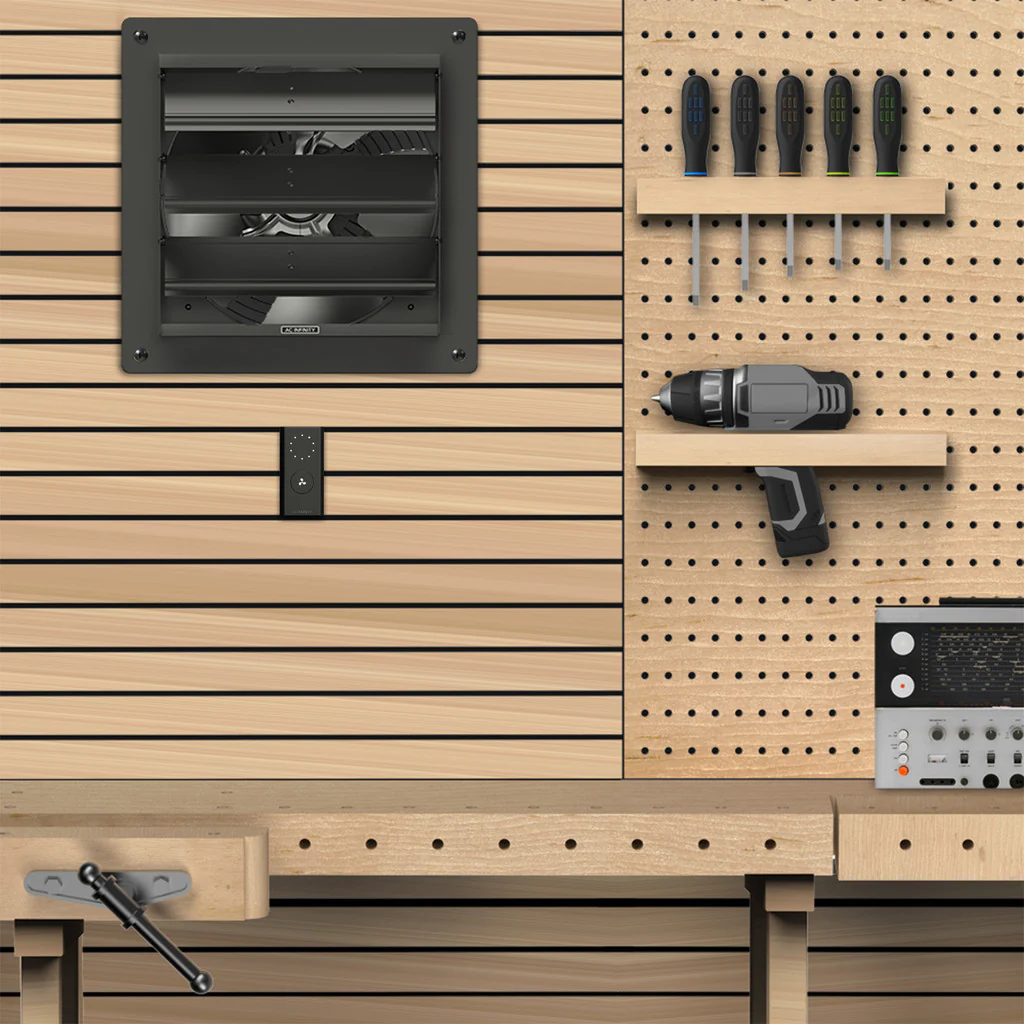

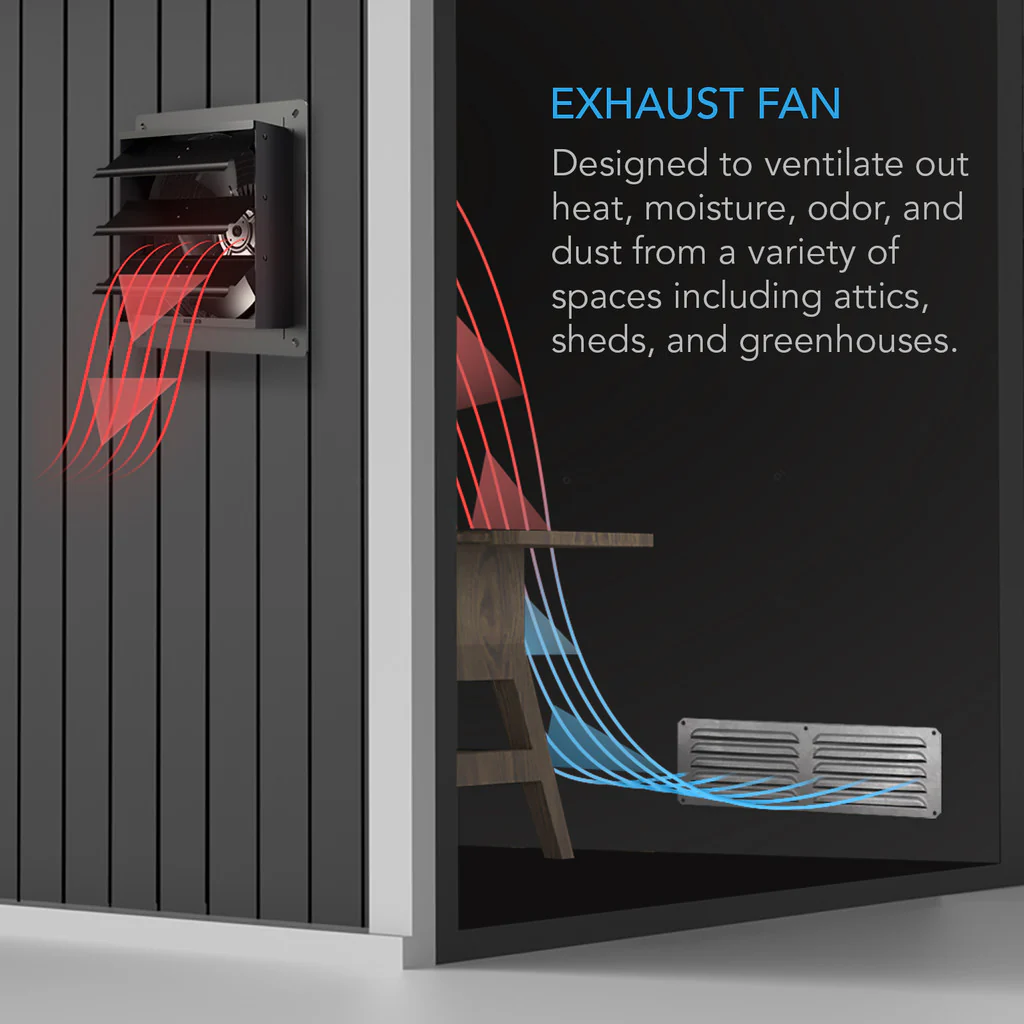

This heavy-duty shutter exhaust fan delivers powerful ventilation for large indoor areas such as greenhouses, garages, workshops, and warehouses. Designed to replace stale air with fresh air, it helps manage heat, humidity, and odors to improve air quality and comfort.

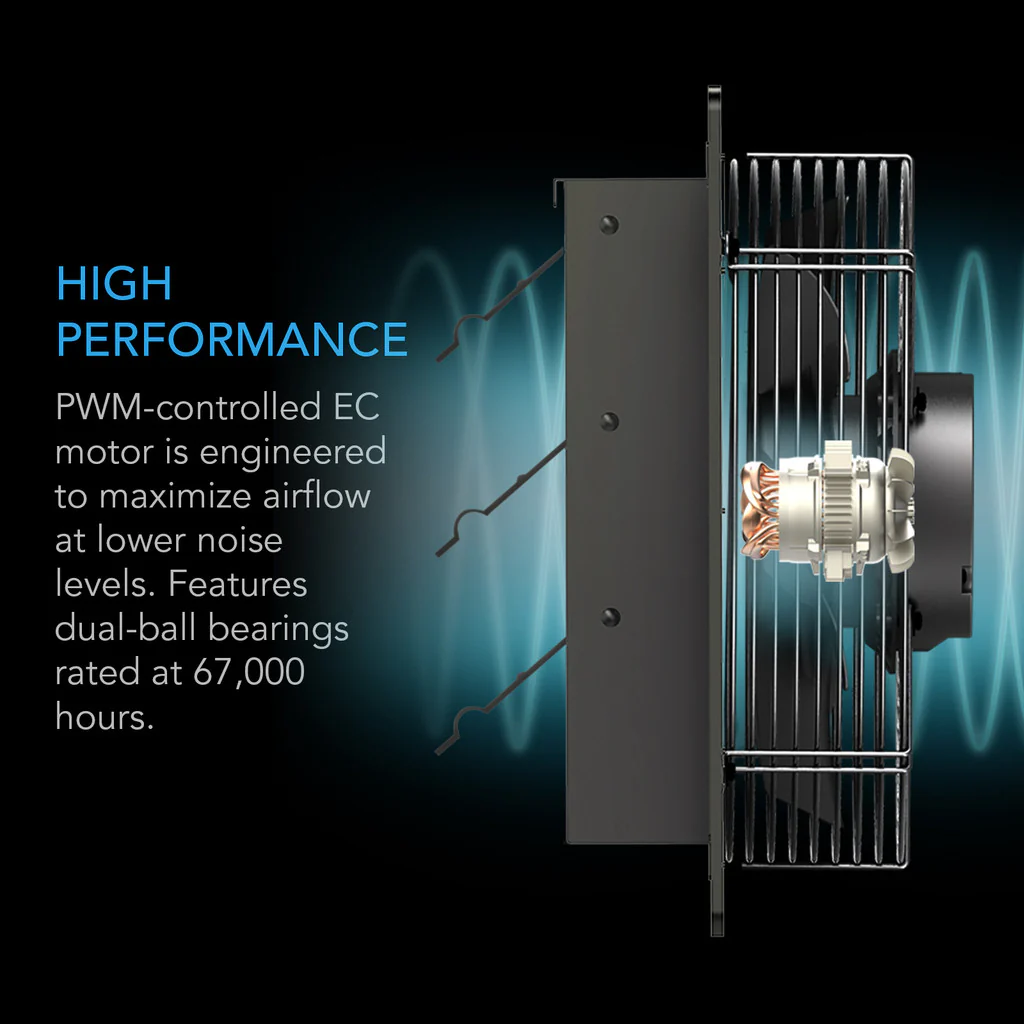

The built-in EC motor with PWM (Pulse Width Modulation) control provides energy efficiency and quiet performance. Use the included 10-speed controller to fine-tune airflow based on your environment. The motor operates smoothly even at low RPMs, ensuring silent and precise control.

Constructed with aluminum fan blades, steel shutters, and wire guards, this exhaust fan is built to withstand tough conditions. Its IP-44 rated housing protects against dust and moisture, making it suitable for harsh environments. Permanent lubrication and dual ball bearings ensure long-lasting performance.

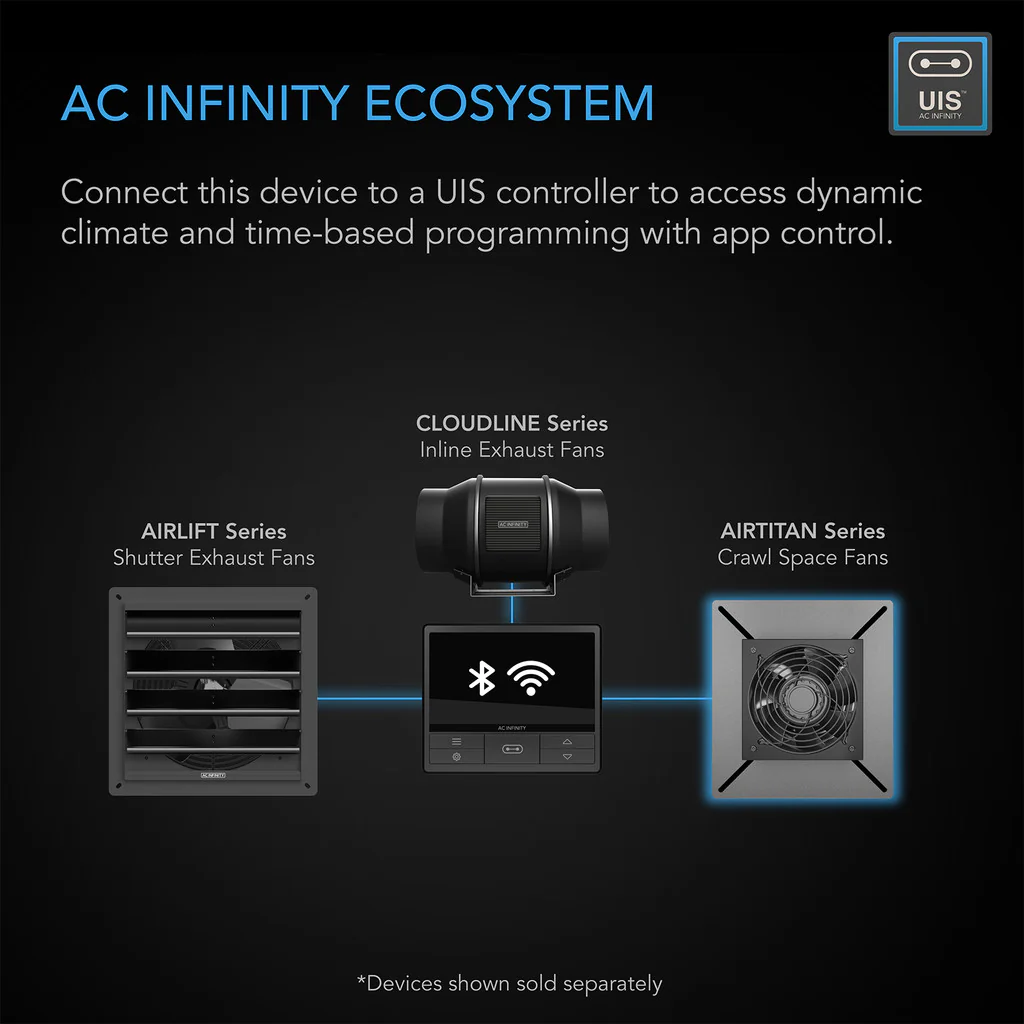

This fan is part of the UIS™ ecosystem and integrates seamlessly with other smart grow devices and controllers for complete climate management.

Key Features

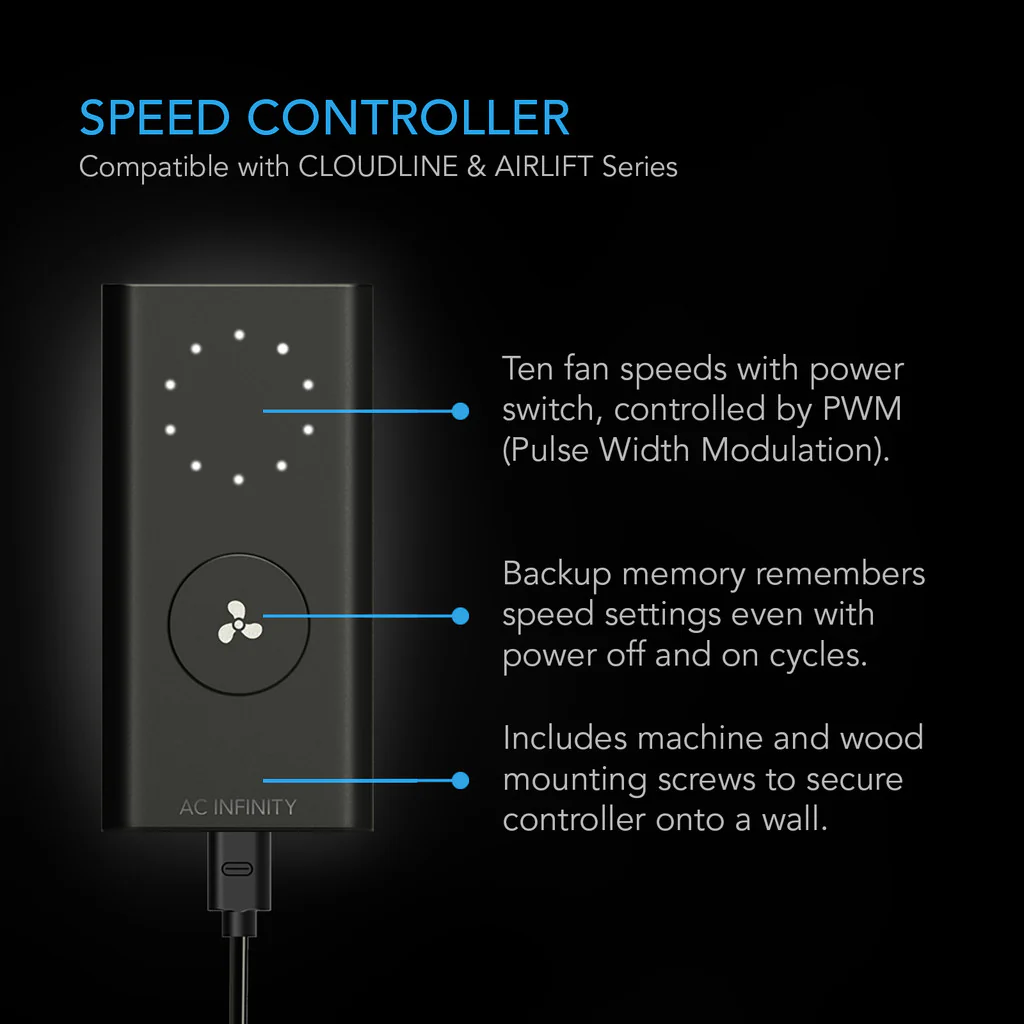

• 10-speed controller with PWM technology for precise fan speed adjustment
• Energy-efficient EC motor reduces power usage and noise
• IP-44 rated steel shutters and aluminum blades resist moisture and dust
• Shutters close automatically to keep out debris and rain when not in use
• Compatible with UIS™ platform for smart environmental control

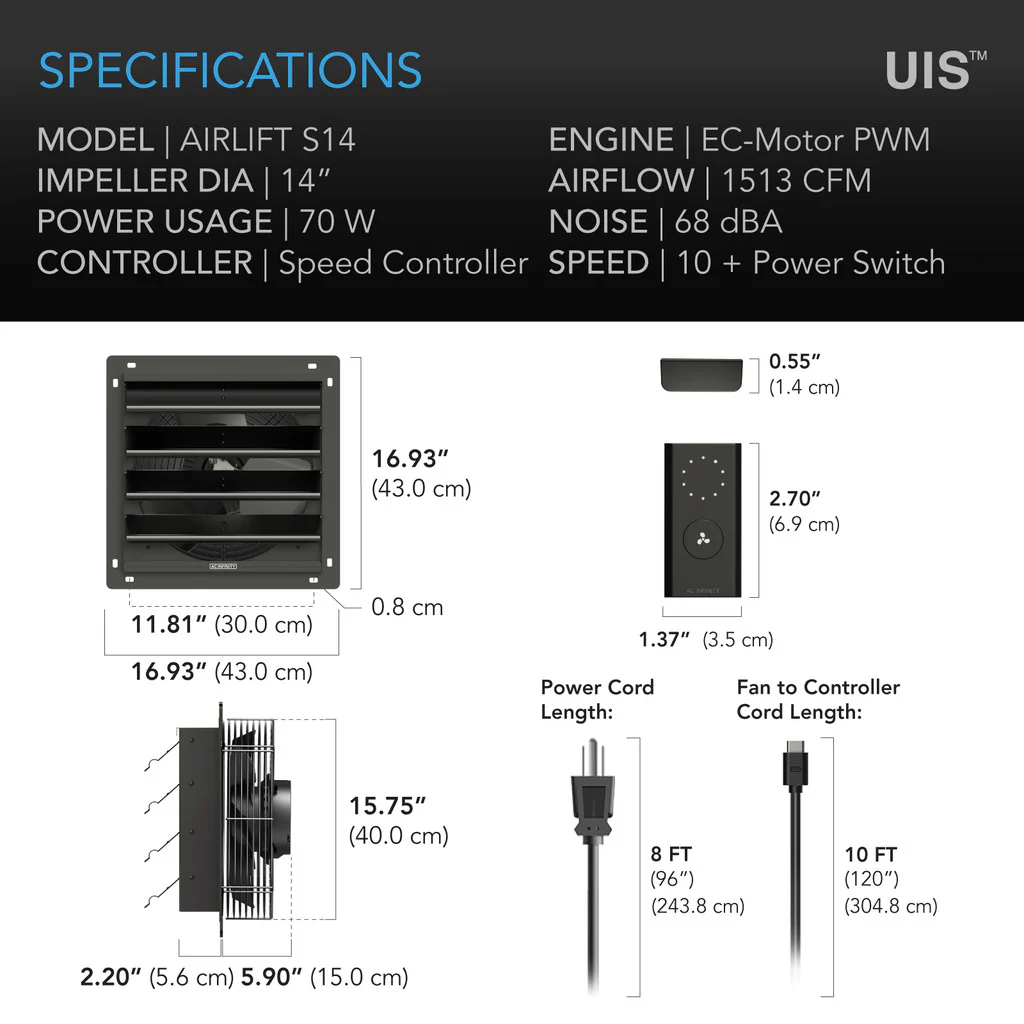

Available Sizes & Specifications

Fan Size	Dimensions (in.)	Airflow (CFM)	Noise (dBA)	Bearings

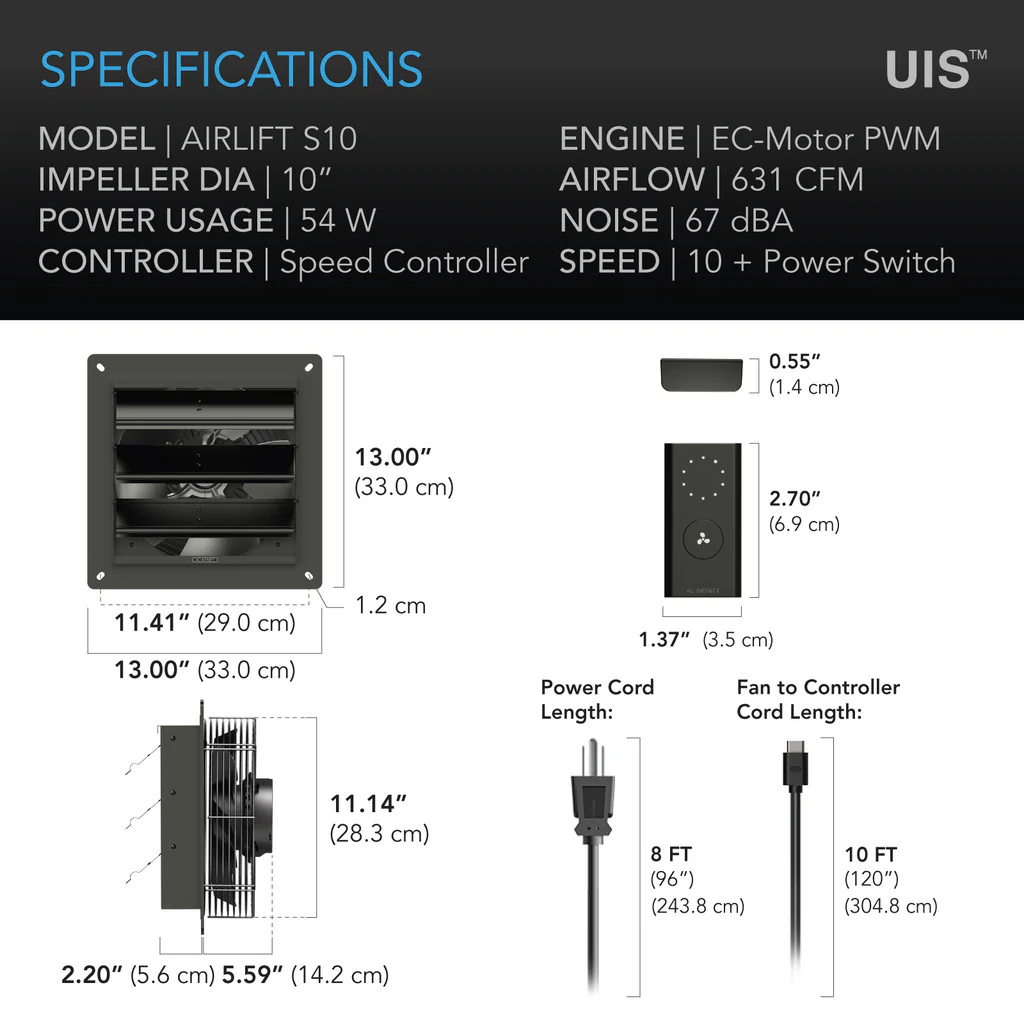

10”	13.0 x 13.0 x 7.79	631	67	Dual Ball
12”	15.75 x 15.75 x 8.14	830	62	Dual Ball
14”	16.93 x 16.93 x 8.1	1513	68	Dual Ball

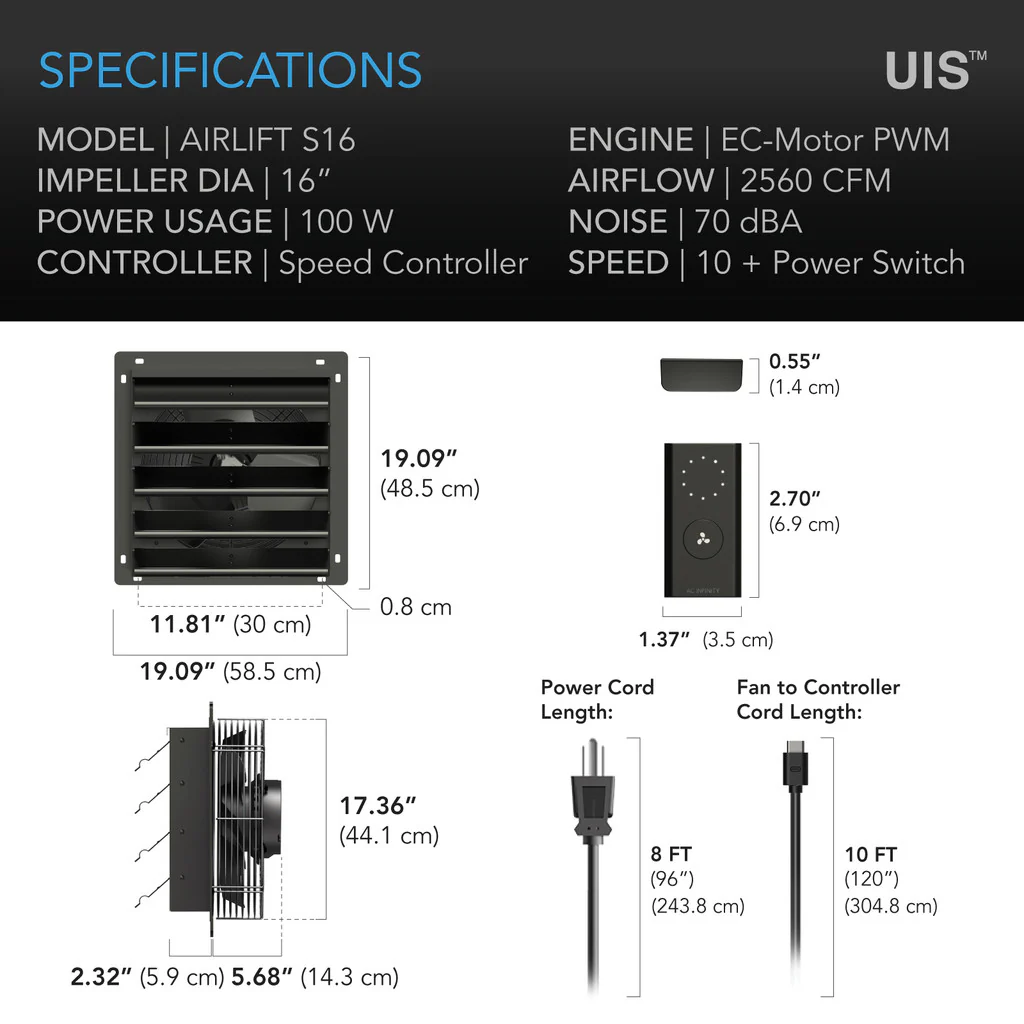

16”	19.09 x 19.09 x 7.72	2560	70	Dual Ball

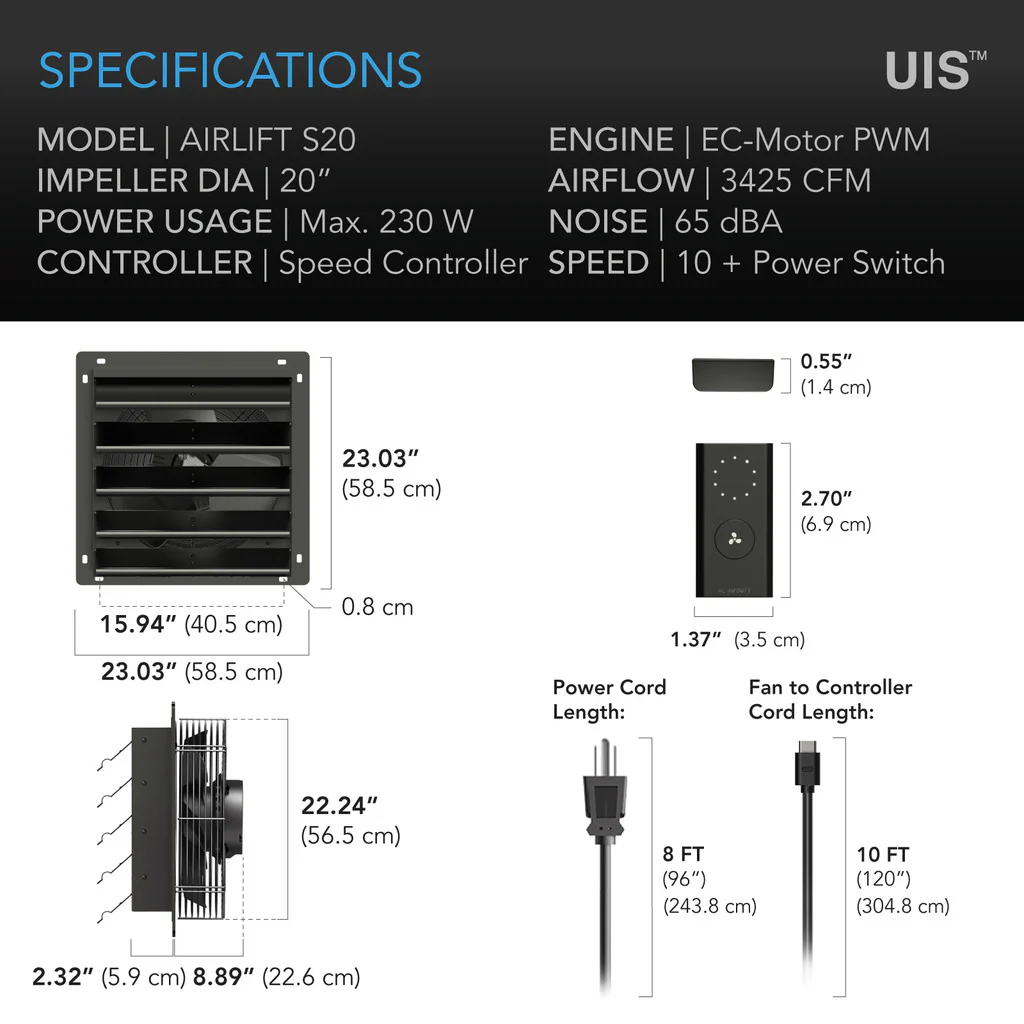

20”	23.0 x 23.0 x 11.2	3425	65	Dual Ball
